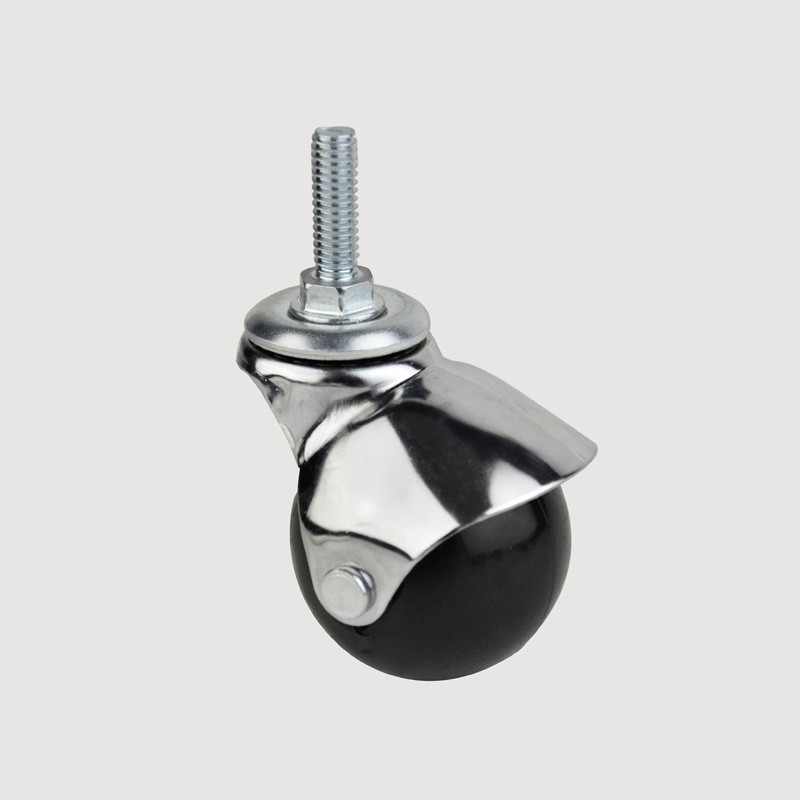

Ball Caster - Bolt Stem
Ball Caster - Bolt Stem
Type：Ball Caster - Bolt StemProduct Details
| Wheel material: | PP |

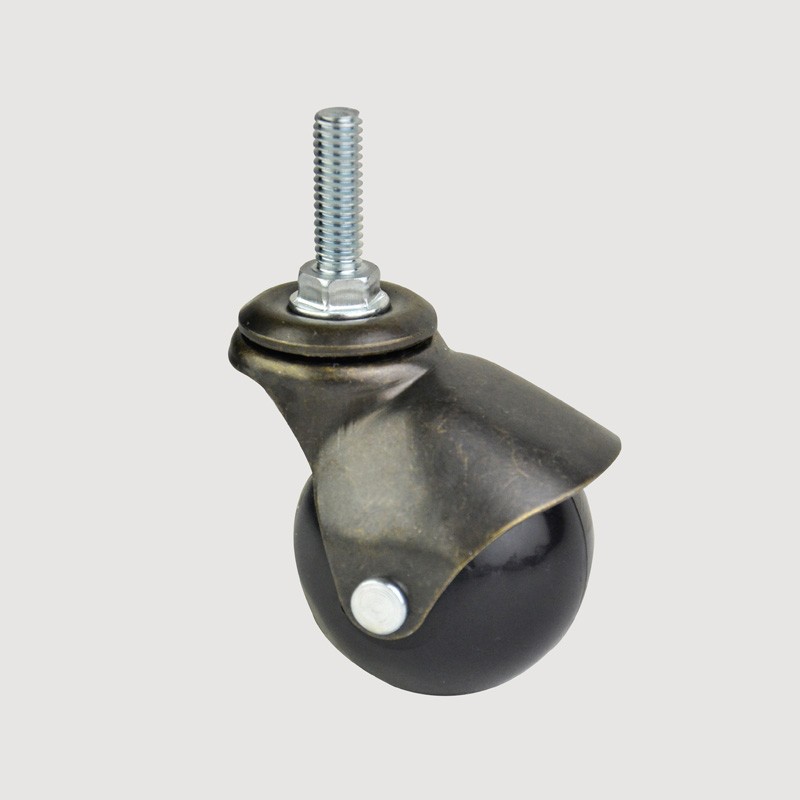

| Shell Finished: | Chrome / Antique Brass |
| Lead-time: | 45-60 day |
| MOQ: | 2,000 pcs |
*Thread length can be customized.
Specification
| Wheel Diameter |
Inch thread (15mmL, 19mmL) |
Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| 35MM | 1/4-20 | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| 35MM | 5/16-18 | 10kgs (22lbs) | 15kgs (33lbs) |
No Brake |
| 35MM | 3/8-16 | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| Wheel Diameter |
Inch thread (15mmL, 19mmL) |
Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| 40MM | 1/4-20 | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| 40MM | 5/16-18 | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| 40MM | 3/8-16 | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| Wheel Diameter |
Inch thread (15mmL, 19mmL) |
Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| 50MM | 1/4-20 | 25kgs (55lbs) | 30kgs (66lbs) | No Brake / Brake |
| 50MM | 5/16-18 | 25kgs (55lbs) | 30kgs (66lbs) | No Brake / Brake |
| 50MM | 3/8-16 | 25kgs (55lbs) | 30kgs (66lbs) | No Brake / Brake |
