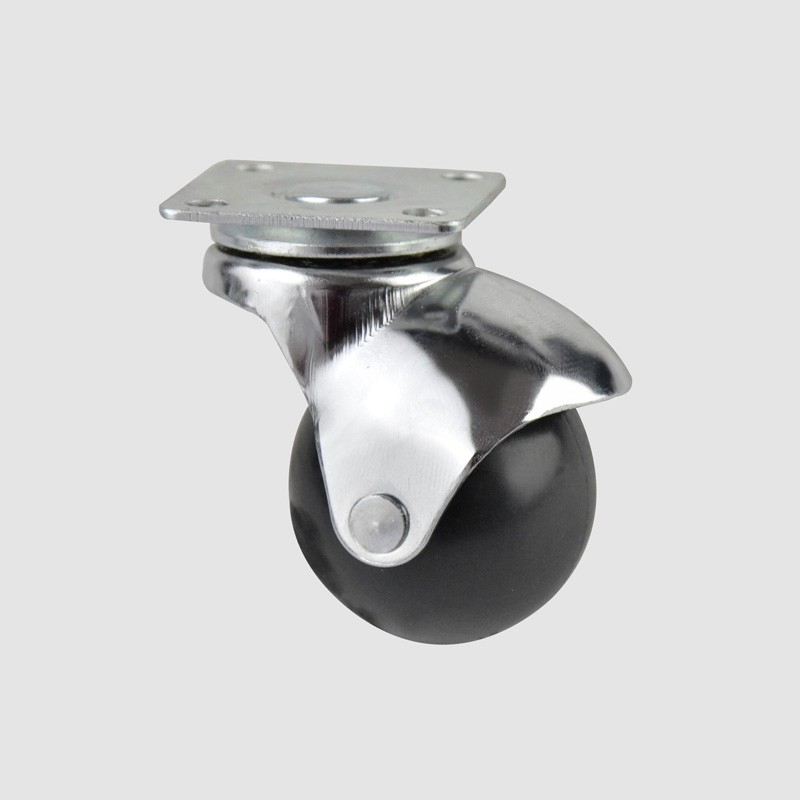

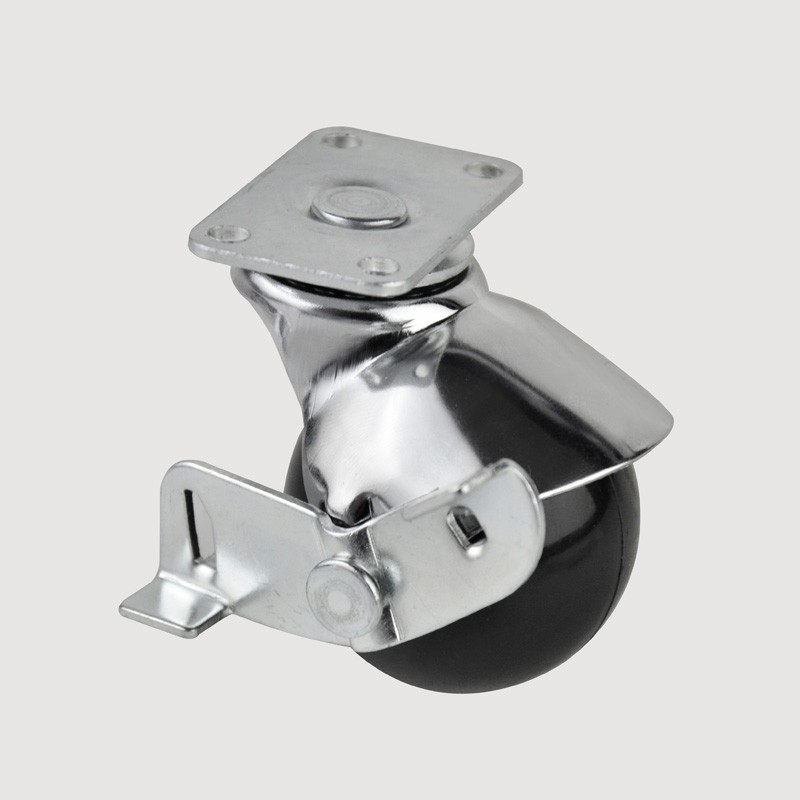

Ball Caster - Top Plate
Ball Caster - Top Plate
Type：Ball Caster - Top PlateProduct Details
| Wheel Material: | PP |
| Shell Finished: | Chrome / Antique Brass |
| Lead-time: | 45-60 day |
| MOQ: | 2,000 pcs |
Specification
| Wheel Diameter |
Top Plate |
Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| 35MM | 38 x 38 MM | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| 35MM | 42 x 42 MM | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| 35MM | 50 x 50 MM | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| 35MM | 51 x 31 MM | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| Wheel Diameter | Top Plate | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| 40MM | 38 x 38 MM | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| 40MM | 42 x 42 MM | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| 40MM | 50 x 50 MM | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| 40MM | 51 x 31 MM | 20kgs (44lbs) | 25kgs (55lbs) | No Brake / Brake |
| Wheel Diameter | Top Plate | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| 50MM | 38 x 38 MM | 25kgs (55lbs) | 30kgs (ˊˊ66lbs) | No Brake / Brake |
| 50MM | 42 x 42 MM | 25kgs (55lbs) | 30kgs (66lbs) | No Brake / Brake |
| 50MM | 50 x 50 MM | 25kgs (55lbs) | 30kgs (66lbs) | No Brake / Brake |
| 50MM | 51 x 31 MM | 25kgs (55lbs) | 30kgs (66lbs) | No Brake / Brake |
