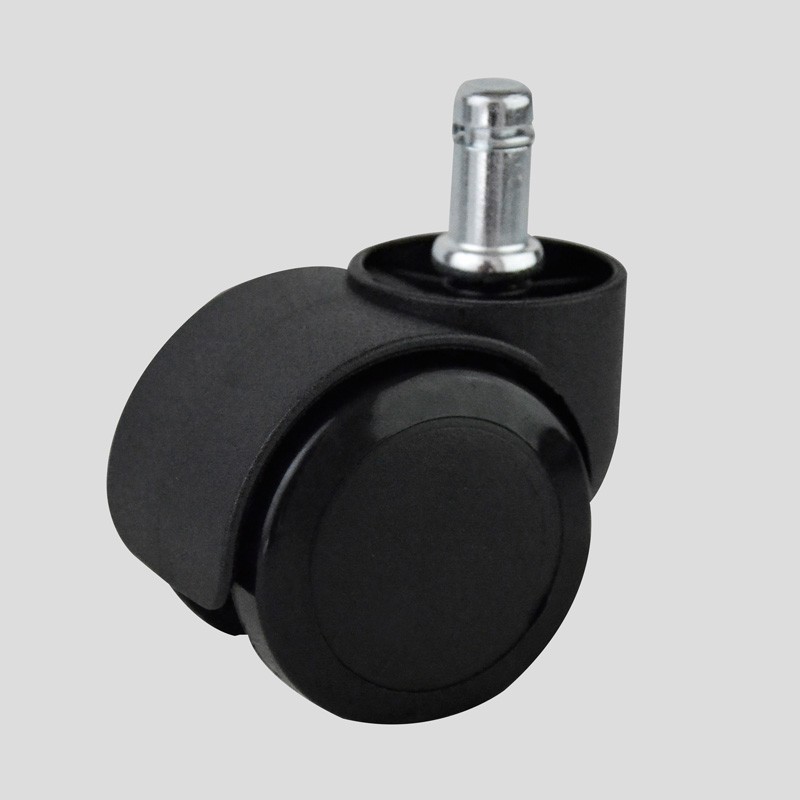

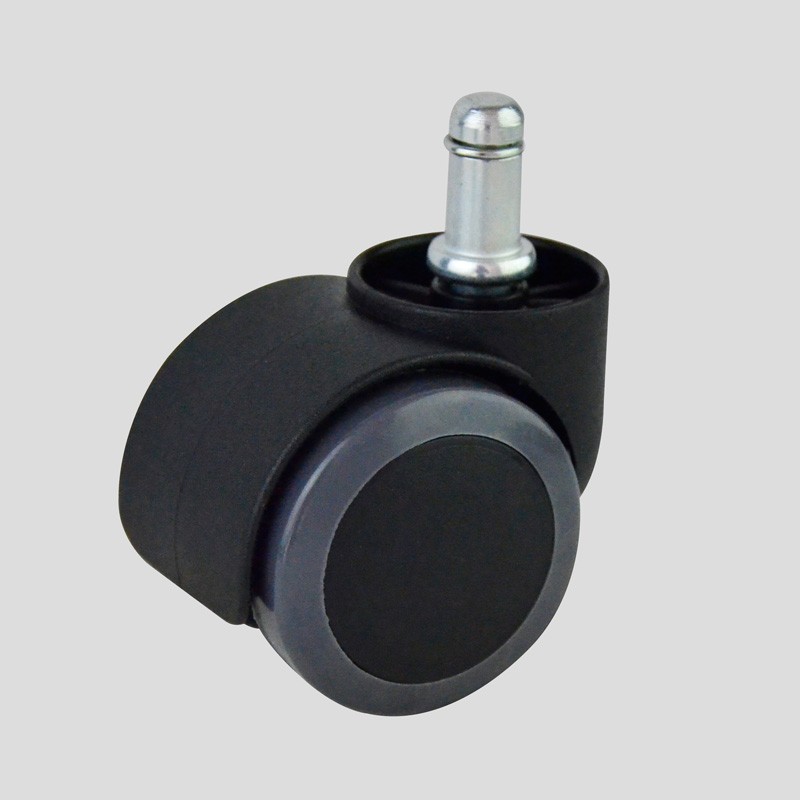

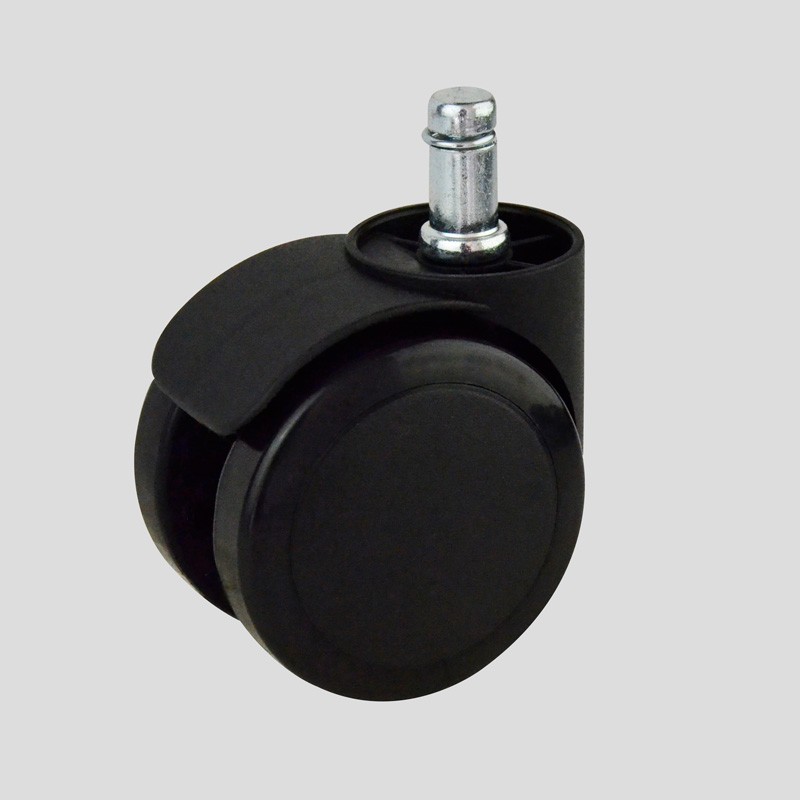

軟輪系列 ‖ PU
規格
| 零件編號 | 輪徑 |
襯套 |
輪寬 | 輪高 | 動態承載能力 | 靜態承載能力 |
| CTWPU38/50 (6-8) | 50MM | 38MM | 49MM | 60.0MM | 30kgs (66lbs) | 35kgs (77lbs) |
| CTWPU38/50 (8-9) | 50MM | 38MM | 49MM | 59.5MM | 45kgs (99lbs) | 50kgs (110lbs) |
| CTWPU42/50 (6-8) | 50MM | 42MM | 53MM | 59.5MM | 30kgs (66lbs) | 35kgs (77lbs) |
| CTWPU42/50 (8-9) | 50MM | 42MM | 53MM | 59.5MM | 45kgs (99lbs) | 50kgs (110lbs) |
| CTW45/50 | 50MM | 45MM | 54MM | 56.0MM | 30kgs (66lbs) | 35kgs (77lbs) |
| 零件編號 | 輪徑 | 襯套 | 輪寬 | 輪高 | 動態承載能力 | 靜態承載能力 |
| CTW38/60 | 60MM | 38MM | 53MM | 68.0MM | 45kgs (99lbs) | 55kgs (120lbs) |
