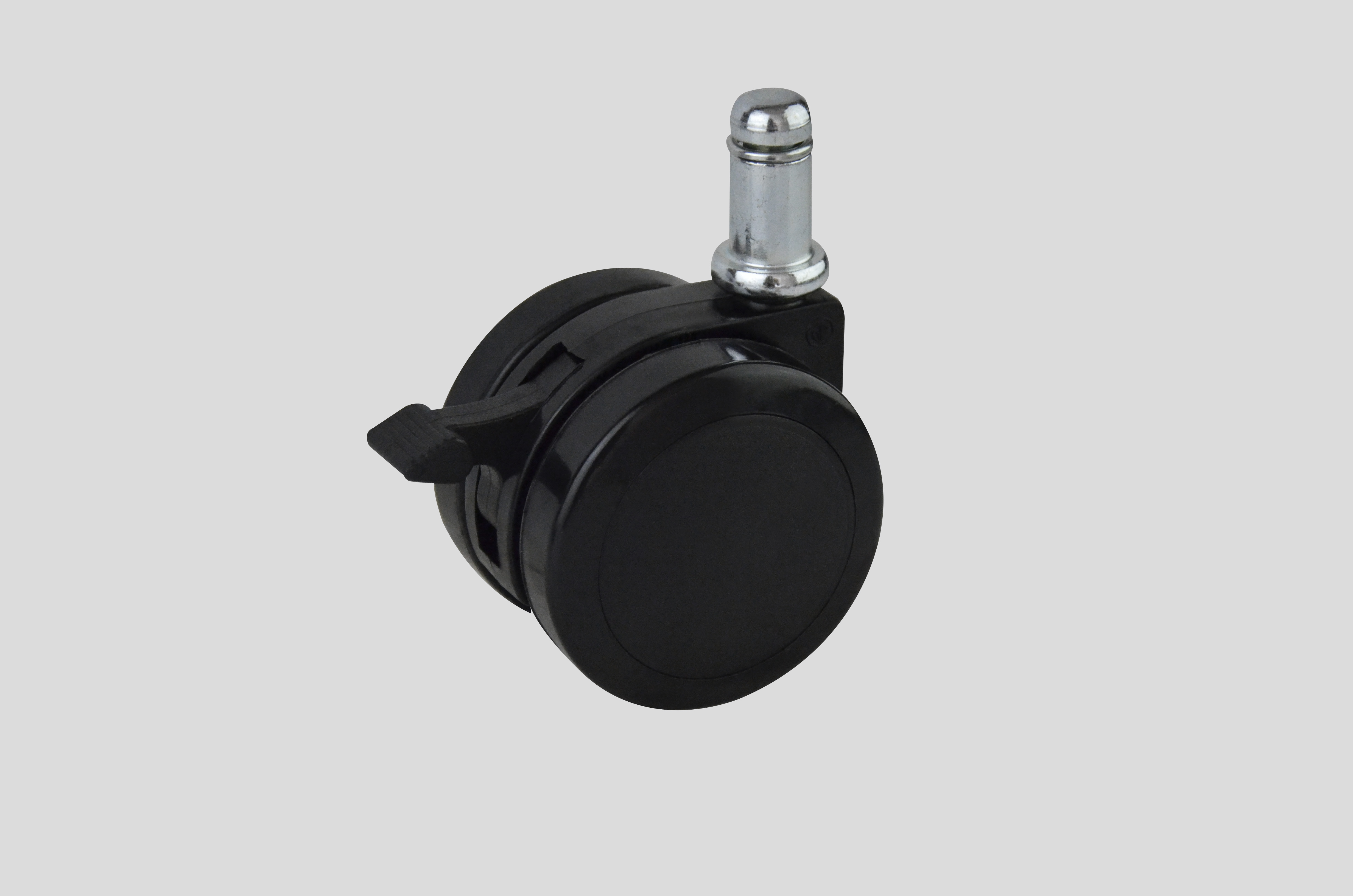

Soft Wheel
Soft Wheel
Wheel material: Nylon / PU (rim) Top fittings: Socket Stem (Grip neck) Friction Ring
Thread Stem
Swivel Plate U-Clip Stem Lead-time: 45-60 day MOQ: 5,000 pcs
Wheel material: Nylon / PU (rim) Top fittings: Socket Stem (Grip neck) Friction Ring
Thread Stem
Swivel Plate U-Clip Stem Lead-time: 45-60 day MOQ: 5,000 pcs
| Part No. | Wheel Diameter |
Wheel Width |
Wheel Height |
Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| UTWPU40 | 40MM | 39.0MM | 20kgs (44lbs) | 25kgs (55lbs) |
No Brake |
|
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity |
Brake Type |
| UTWPU50 | 50MM | 43.8MM | 30kgs (66lbs) | 35kgs (77lbs) |
No Brake |
|
| UTWBPU50 | 50MM | 43.8MM | 30kgs (66lbs) | 35kgs (77lbs) |
Brake |
|
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity |
Brake Type |
| UTWPU60 | 60MM | 58.0MM | 68.5MM | 60kgs (132lbs) | 80kgs (176lbs) |
No Brake |
| UTWBPU60 | 60MM | 58.0MM | 68.5MM | 60kgs (132lbs) | 80kgs (176lbs) | Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| UTWPU75 | 73MM | 63.0MM | 81MM | 60kgs (132lbs) | 80kgs (176lbs) | No Brake |
| UTWBPU75 | 73MM | 63.0MM | 81MM | 60kgs (132lbs) | 80kgs (176lbs) | Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| UTWPU100 | 100MM | 73.5MM | 108MM | 80kgs (176lbs) | 100kgs (220lbs) | No Brake |
| UTWBPU100 | 100MM | 73.5MM | 108MM | 80kgs (176lbs) | 100kgs (220lbs) | Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| UTWPU125 | 125MM | 86.5MM | 138MM | 100kgs (220lbs) | 120kgs (264lbs) | No Brake |
| UTWBPU125 | 125MM | 86.5MM | 138MM | 100kgs (220lbs) | 120kgs (264lbs) | Brake |
The Soft Wheel is designed with a combination of nylon and PU materials for optimal performance. The nylon provides durability and strength, while the PU rim offers excellent grip and shock absorption.
Equipped with top fittings such as the Socket Stem with a Grip Neck, the Soft Wheel ensures secure and hassle-free installation. This enhances stability and reliability during rolling, making it suitable for a wide range of applications.
With a lead-time of 45-60 days, we prioritize efficient production and timely delivery to meet your project requirements. We understand the importance of delivering on time to keep your operations running smoothly.
To cater to your needs, the Soft Wheel has a minimum order quantity (MOQ) of 5,000 pieces. This ensures a sufficient supply to meet your demands and maintain productivity.
The Soft Wheel features additional fittings including the Friction Ring, Thread Stem, Swivel Plate, and U-Clip Stem. These fittings provide versatility and compatibility with various equipment and structures.
