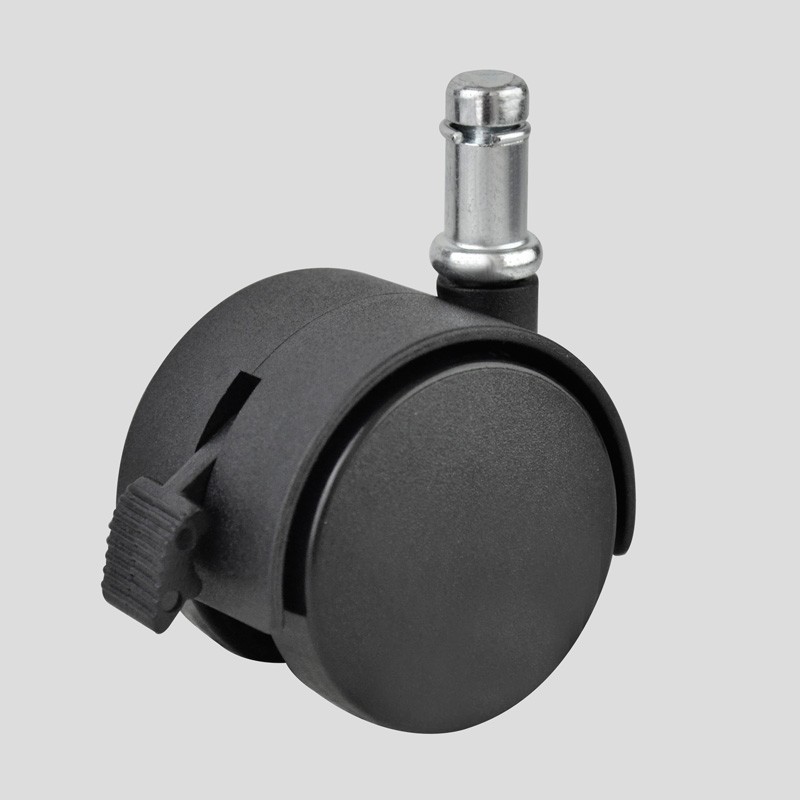

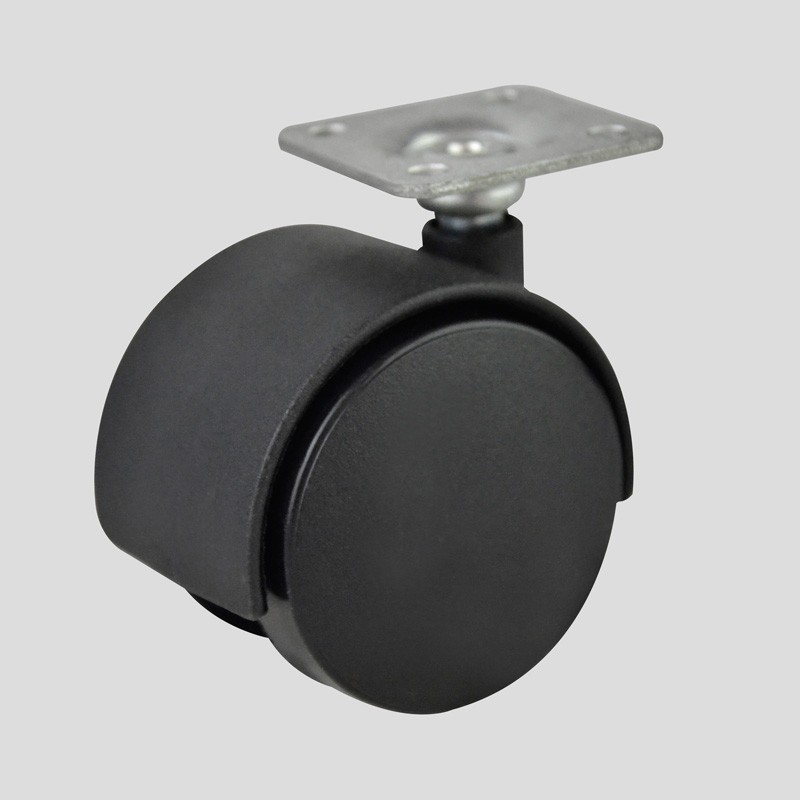

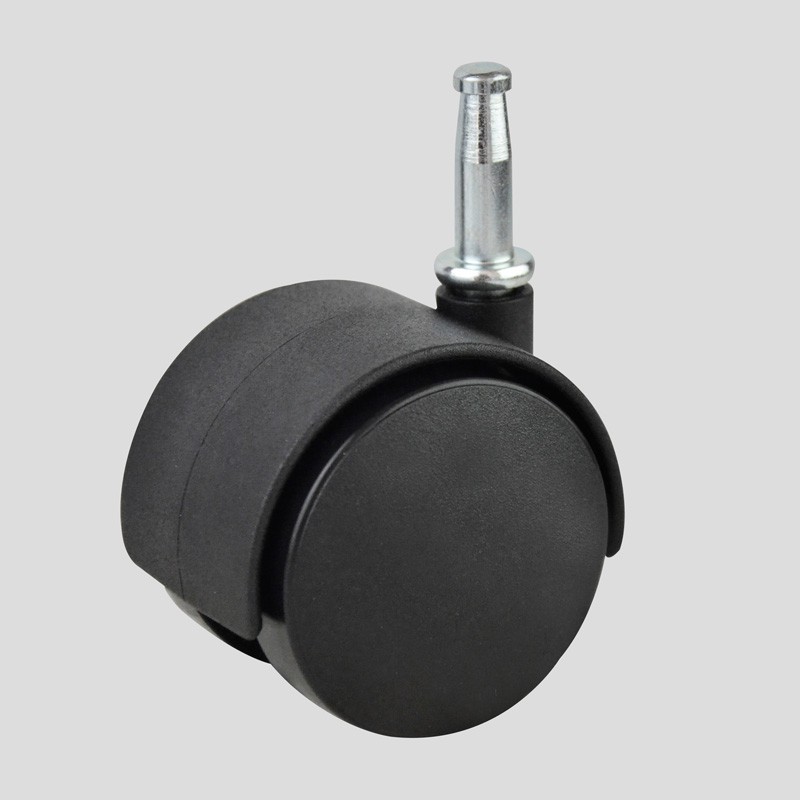

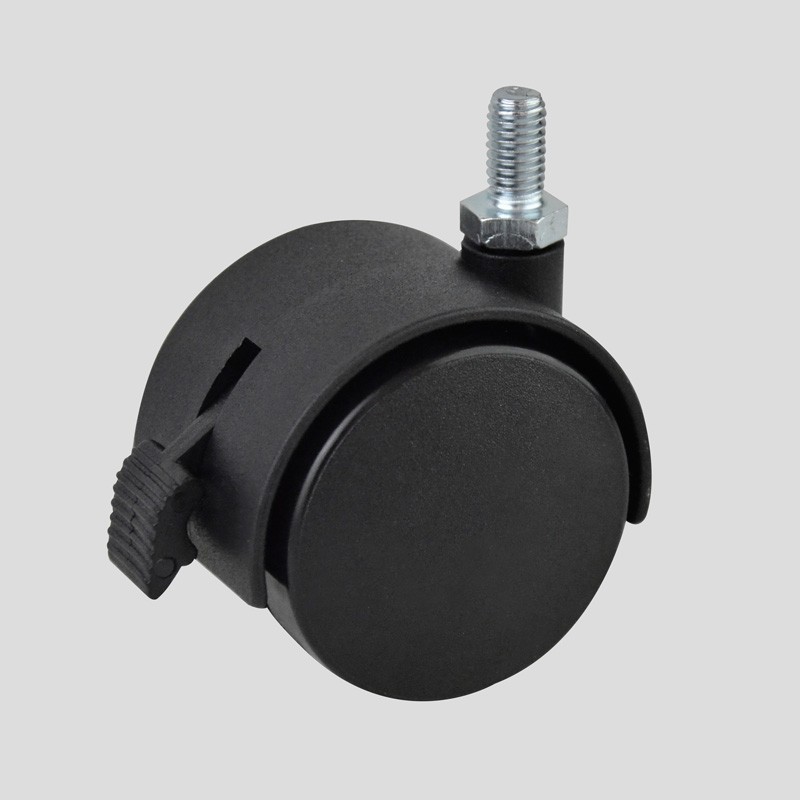

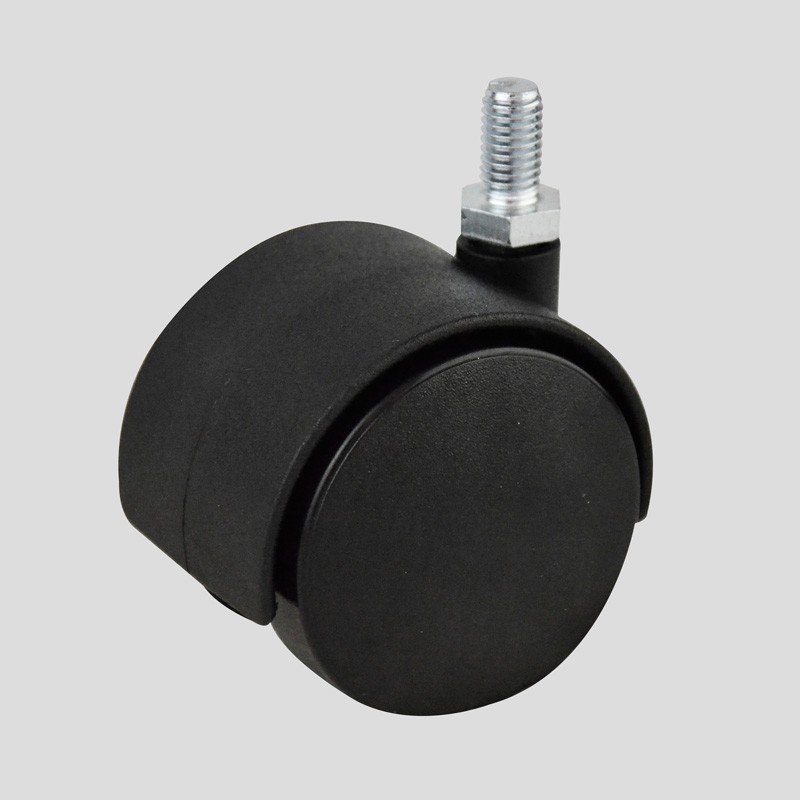

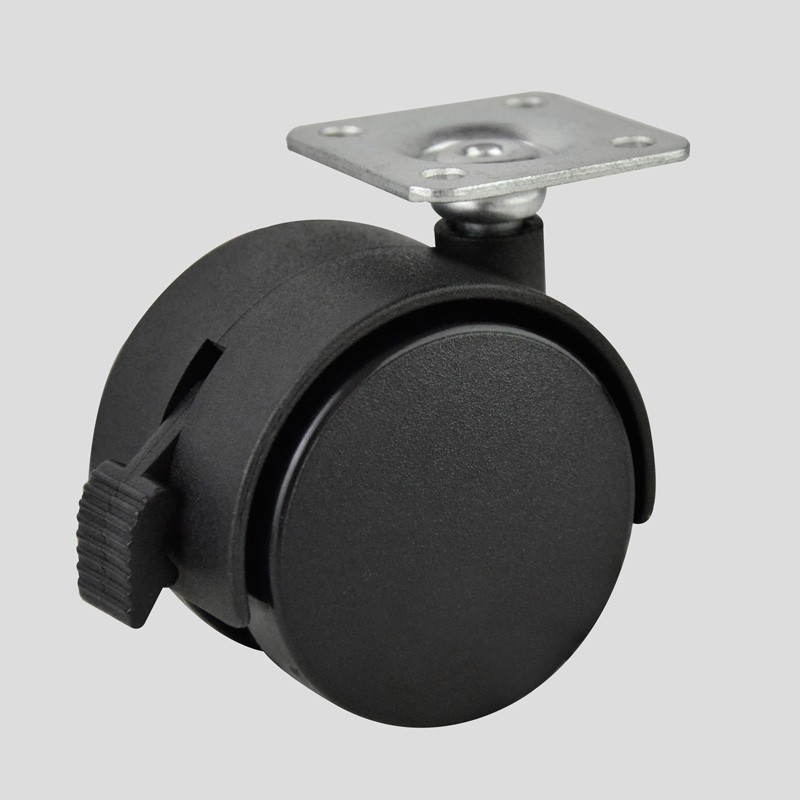

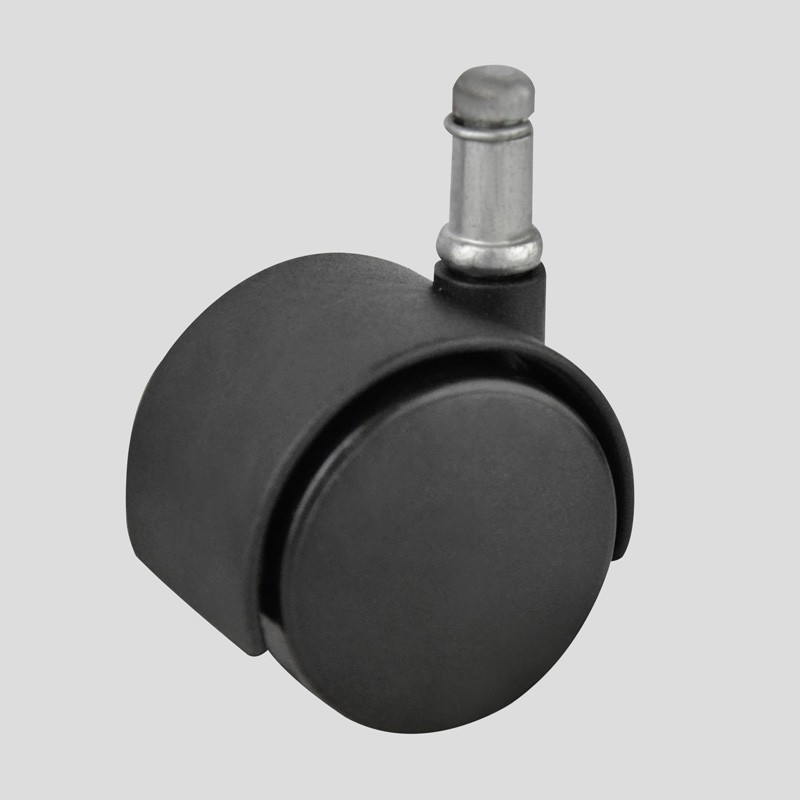

Hard Wheel
Hard Wheel
Type：Hooded- Brake & w/o BrakeProduct Details
| Wheel material: | Recycled nylon (RoHS compliant) |
| Top fittings: | Socket Stem (Grip neck) |
|
|
Friction Ring |
|
Thread Stem |
|
|
Swivel Plate |
|
|
U-Clip Stem |
|
| Lead-time: | 45-60 day |
| MOQ: | 5,000 pcs |
Specification
| Part No. | Wheel Diameter |
Wheel Width |
Wheel Height | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| TW30 | 30MM | 32.8MM | 37.0MM | 10kgs (22lbs) | 15kgs (33lbs) |
No Brake |
| TWB30 | 30MM | 32.8MM | 37.0MM | 10kgs (22lbs) | 15kgs (33lbs) |
Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| TW35 | 35MM | 38.8MM | 39.8MM | 10kgs (22lbs) | 15kgs (33lbs) | No Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity |
Brake Type |
| TW40 | 40MM | 40.6MM | 46.5MM | 20kgs (44lbs) | 25kgs (55lbs) |
No Brake |
| TWB40 | 40MM | 40.6MM | 46.5MM | 20kgs (44lbs) | 25kgs (55lbs) |
Brake |
| TW41 | 41MM | 41.3MM | 46.0MM | 20kgs (44lbs) | 25kgs (55lbs) | No Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity | Brake Type |
| TW45 | 45MM | 41.5MM | 49.5MM | 20kgs (44lbs) | 25kgs (55lbs) | No Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity |
Brake Type |
| TW50 | 50MM | 48.5MM | 54.5MM | 30kgs (66lbs) | 35kgs (77lbs) |
No Brake |
| TWB50 | 50MM | 48.5MM | 54.5MM | 30kgs (66lbs) | 35kgs (77lbs) |
Brake |
| TW50 | 50MM | 49.5MM | 56.2MM | 45kgs (99lbs) | 50kgs (110lbs) |
No Brake |
| Part No. | Wheel Diameter | Wheel Width | Wheel Height | Dynamic Loading Capacity | Static Loading Capacity |
Brake Type |
| TW60 | 60MM | 52.5MM | 64.0MM | 45kgs (99lbs) | 55kgs (120lbs) |
No Brake |
| TWB60 | 60MM | 52.5MM | 64.0MM | 45kgs (99lbs) | 55kgs (120lbs) |
Brake |
