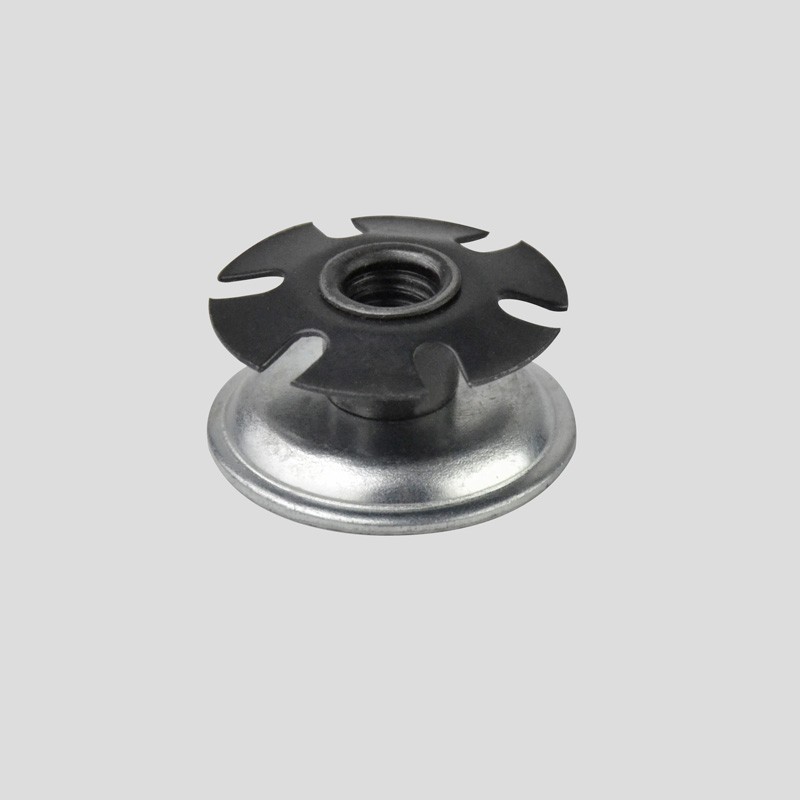

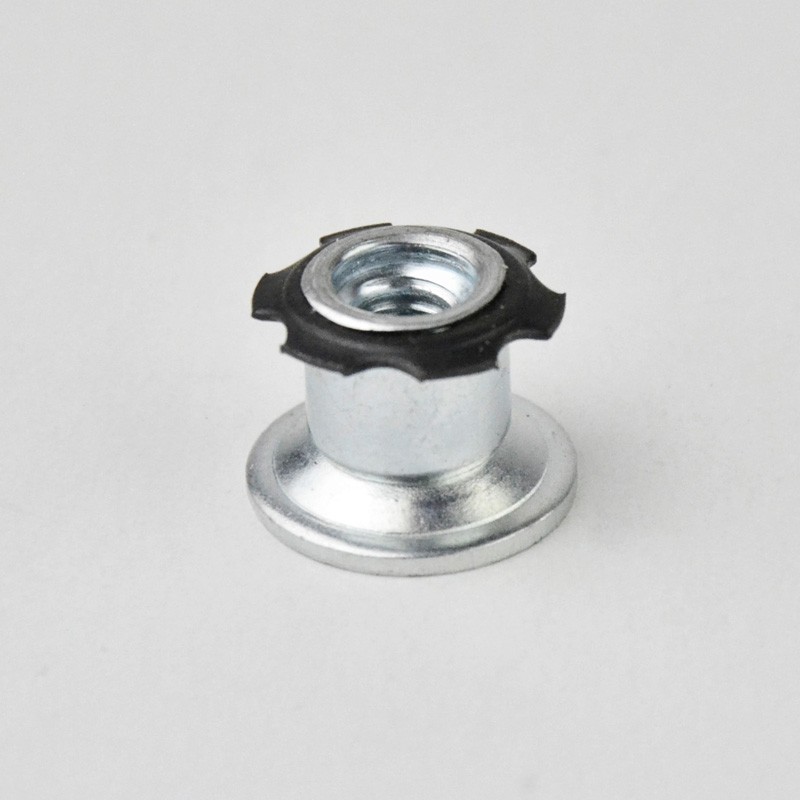

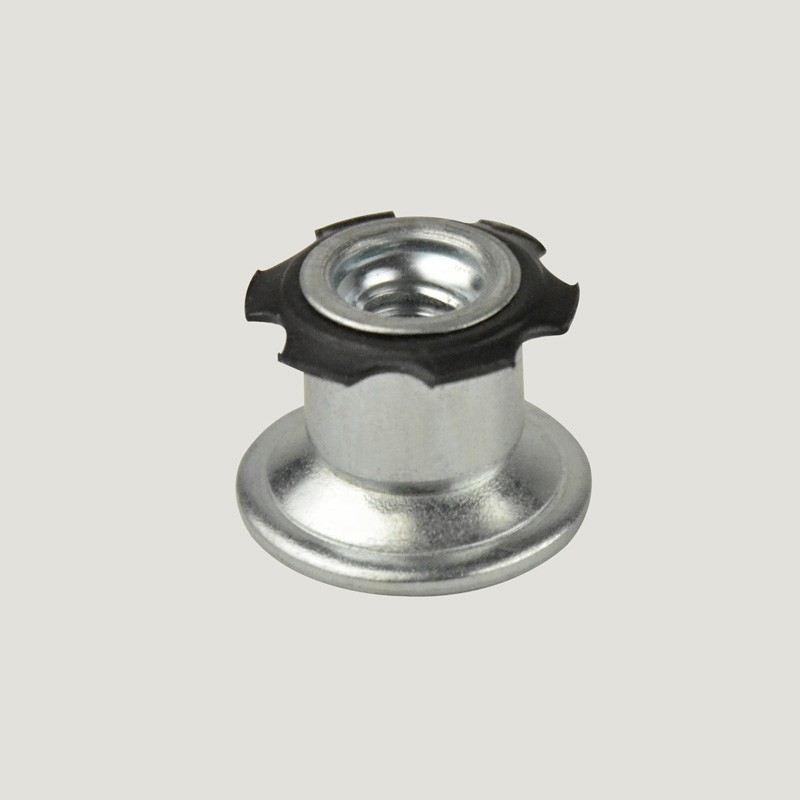

圓形管內螺母 ‖ 單彈片
圓形管內螺母 ‖ 單彈片
型號：S305 ‖ 圓形 ‖ 單層產品詳情
| 材質 : | 鋼 |
| 交期 : | 35-50 天 |
| 最低量: : | 5,000 件 |
| 適用管厚 : | 16-18 ga (≒ 1.2-1.5mm) |
※選擇適合的金屬管塞兩步驟:
① 首先確認使用的鐵管厚度是否介於1.2-1.5mm
管厚計算公式:(鐵管外徑-鐵管內徑)÷2
② 確認螺母規格是英制牙或公制牙
規格
| 品號 | 管外徑 (inch) | 管外徑 (mm) | 英制螺紋 | 公制螺紋 |
| S305-19B14 (M6) | 3/4" | 19mm |
1/4" |
M6 |
| S305-22B14 (M6) | 7/8" | 22mm |
1/4" |
M6 |
| S305-25B14 (M6) | 1" | 25mm |
1/4" |
M6 |
| S305-28B14 (M6) | 1-1/8" | 28mm | 1/4" | M6 |
| S305-32B14 (M6) | 1-1/4" | 32mm | 1/4" | M6 |
| S305-38B14 (M6) | 1-1/2" | 38mm | 1/4" | M6 |
| S305-44B14 (M6) | 1-3/4" | 44mm | 1/4" | M6 |
| S305-50B14 (M6) | 2" | 50mm | 1/4" | M6 |
| 品號 | 管外徑 (inch) | 管外徑 (mm) | 英制螺紋 | 公制螺紋 |
| S305-19B516 (M6) | 3/4" | 19mm | 5/16" | M8 |
| S305-22B516 (M8) | 7/8" | 22mm | 5/16" | M8 |
| S305-25B516 (M8) | 1" | 25mm | 5/16" | M8 |
| S305-28B516 (M8) | 1-1/8" | 28mm | 5/16" | M8 |
| S305-32B516 (M8) | 1-1/4" | 32mm | 5/16" | M8 |
| S305-38B516 (M8) | 1-1/2" | 38mm | 5/16" | M8 |
| S305-50B516 (M8) | 2" | 50mm | 5/16" | M8 |
| 品號 | 管外徑 (inch) | 管外徑 (mm) | 英制螺紋 | 公制螺紋 |
| S305-22B38 (M10) | 7/8" | 22mm | 3/8" | M10 |
| S305-25B38 (M10) | 1" | 25mm | 3/8" | M10 |
| S305-28B38 (M10) | 1-1/8" | 28mm | 3/8" | M10 |
| S305-32B38 (M10) | 1-1/4" | 32mm | 3/8" | M10 |
| S305-38B38 (M10) | 1-1/2" | 38mm | 3/8" | M10 |
| S305-44B38 (M10) | 1-3/4" | 44mm | 3/8" | M10 |
| S305-50B38 (M10) | 2" | 50mm | 3/8" | M10 |
產品詢問
歡迎將您有興趣的產品加入清單，我們將依詢問規格提供完整報價與建議。
| 圖片 | 商品名稱 |
|---|---|
|
圓形管內螺母 ‖ 單彈片 S305 ‖ 圓形 ‖ 單層 |
